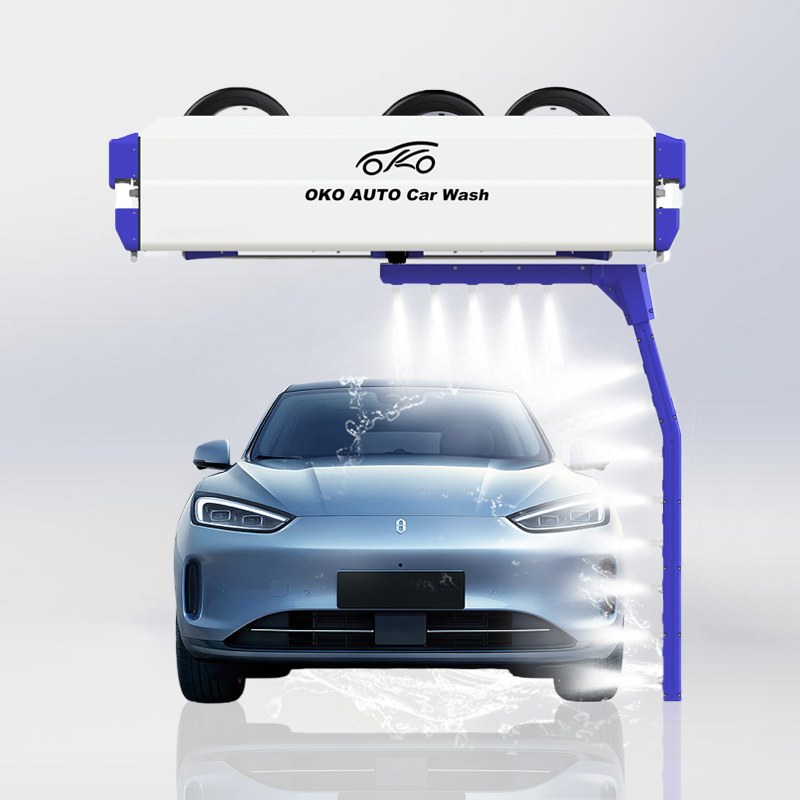

OKO-200A Intelligent Automatic Car Wash Machine

Availability:
Quantity:
  • OKO-200A

DEVICE PARAMETERS

Parameters of oko contactless intelligent car washing machine
Model OKO-200A
Guarantee one year
Install Remote instruction
Major function Program Automation
Car wash liquor spray
Shampoo spray
High pressure flushing
Water shortage alarm
Lack of car wash liqui alarm
Lack of shampoo alarm
Automatic proportioning
Rights Management
Energy saving system
Frequency conversion system
Water pressure adjustment
Intelligent anti shake
Electronic anti collision
Mechanical collision avoidance
Vehicle commander inspection
Fault self test
Counting function
Process LED display
Chassis flushing
Mobile air drying
Smart payment (WeChat Alipay) Optional
Smart license plate recognition payment (including WeChat Alipay) Optional
Usage voltage/power 380V/7.5KW
Controller PLC and program OKO
Water pump PINEL from Germany
Relay Schneider from France
AC contactor Schneider from France
Flushing pressure 50-100 kg pressure
Water consumption for car washing 90-200L water volume
Installation dimensions (Length*width*height) 6.3m*3.2m*3.2m
Vehicle backing space (Length*width*height) 7m*4m*3.3m
Vehicle throughing space (Length*width*height) 8m*6m*3.3m
Machine room requirements (customer equipped) Machine room area: 2*3M, three-phase electricity: 7.5KW, with three-phase four-wire leakage 100A electric switch, and the ground wire is less than 4 Ω. Water: 6 water inlet pipes. Gas: Equipped with 3KV air compressor.
Technical service:  Lao Dening +86 18902552181

Business contact:  Zhang Qiuyue +86 13922741128

1. The above quotation does not include air compressors, water tanks, floor panels, drainage works, water and electricity to the machine room.

2. Our company’s factory standard wiring is 10 meters in total. If the customer’s computer room is located far away, it is necessary to extend the line pipe. The lengthened part will cost $40 per meter.

3. If the vehicle is installed to pass through the site directly, an additional $70 will be charged because of the need to add control circuits, sensors, and mounting brackets.


car wash equipment3

Exit Pattern: 4 meters × 9 meters

Pass-through Pattern: 4 meters × 6.5 meters

Engine room: 2 meters × 3 meter

Equipment parameters or parts are subject to change without prior notice.





OKO was founded in 2019 as an auto products company  whose primary business consists of R&D,  production and selling.


OKO imports mature and stable smart car wash system from OKO’s Canada company and advanced management program from western countries as its main products. There are four advantages contributing to its core competitiveness such as leading, mature and stable equipment, neutral environment friendly free brushing car wash liquid recipe, recycling of wastewater and reutilization. Advanced management and cooperation modes from European and American countries are introduced. Production and acceptance check follow European quality standard. Main components are bought from famous European brands, such as water pump of PINEL from Germany, PLC of Siemens from Germany, electrical parts of Schneider from France for insurance to products’ stability and durability. Problems like large amount of capital input in startup, difficulty in recruitment, high cost of labor and low efficiency of car will be solved to realize cooperation and the win-win strategy to grow with the customer together.


CAR WASH MODE/ SMART CAR WASH PROCEDURE

(The following two choices are specially recommended to unmanned system)

INTEGRATION OF WASH

STANDARD WASH (4-6 MINUTES)

Suitable for cars having not been washed for about one week, quick wash, low requirement for car cleanliness

Equipment parameters or parts are subject to change without prior notice

AND MAINTENANCE (6-8 MINUTES)

Suitable for cars having not been washed for more than two weeks with relatively more sediment accumulation. Cleaning and coating at the same time, which is the best choice for car paint caring.


WASHING PROCESS


1.Cleaning of High-pressure chassis

Dirt especially snow-melting agent stuck to chassis will lead to rusting of chassis without timely cleaning. Strong fan-shaped water is used to brush dirt on the chassis


2.Energy-saving Smart rotating Spraying of Car Wash liquid

To meet the cost control requirement of brushing free car wash liquid from domestic shops, the company makes use of special technic to separate high-pressure water and brushing free car wash liquid. Spraying of atomized free brushing car wash liquid with small independent mechanical arm will promote dirt cleaning efficiency with separation of car wash liquid in an energy-saving way.


3.360-Degree Smart rotating Spraying of Maintenance Shampoo

Mechanical Arm makes evenly spraying to cover the car with maintenance shampoo foam atomized with special device to play its role in protection of paint surface


4.360-Degree Smart rotating High-pressure BrushingBright Colored CoatingEmbedded Quick Drying

Spraying mechanical arm makes all-round cleaning in an equal velocity, equal distance, equal pressure fan-shaped water medium polishing way, with 360-degree surrounding high-pressure untouched. Brushing of the car body with fan-shaped water medium polishing method realizes polishing of the car body with cleaning.


5.Bright Colored Coating

Coating water covers the car’s paint surface with a layer of high molecular polymer that will turn into a solid protective film after mixing, which provides the car with a strong layer of protection paint to prevent it from damages like acid rain, pollution and ultraviolet rays.


6.Embedded Quick Drying System

Realize quick drying with high-pressure fan through oriented jet flow, low power, high wind speed and high pressure. Make the best combination between effect and energy consumption with sectional strengthening for the whole car body.


7.Smart Collision Prevention System

Car Blog Car Wash Machine is a smart car wash device which can wash cars on the premise of safety. Security protection is available in all kinds of emergencies to ensure clean wash and safe operation.


8.Smart liquid Proportioning System

This system acts as a powerful chemical laboratory equipped with various liquid packages including normal car wash liquid, water expelling and coating wax, brushing free car wash liquid, which realizes fully automatic proportion adjustment without manual operation.


9.24-hour Smart Car Wash with Fully Smart Unmanned System

This system is capable of finishing the whole car wash process with computer’s smart control in unmanned operation condition according to car wash procedure preset by customers. This is a genuine fully automatic untouched car wash machine which realizes replacement of machines by human beings and 24 hours self-service.


Equipment parameters or parts are subject to change without prior notice.
